Products > Refrigeration units > Commercial series > Split > ESS – Work rooms

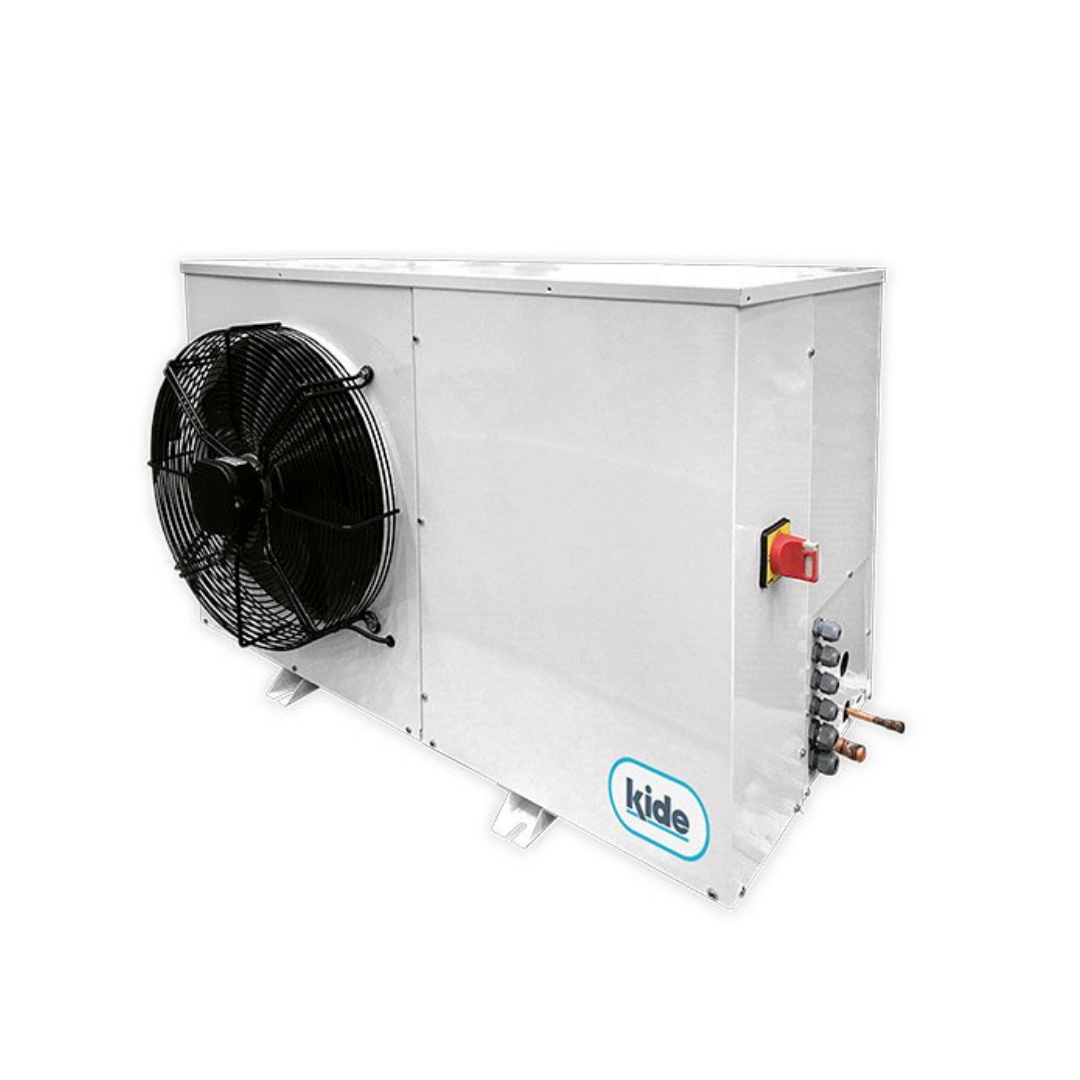

ESS - Work Rooms

Split refrigeration equipment, specially designed for food handling and processing rooms, anterooms and loading areas In high temperature applications.

12ºC
R-449AR-404A
REQUEST A QUOTE

General features

  • Pre-charged with refrigerant R449 (Max. length 10 m)
  • Scroll compressor in the three-phase units Soundproof compartment and separated from the air flow.
  • Hermetic compressor on single phase units.
  • Low temperature with liquid injection in Scroll compressor units.
  • Oversized condenser coil with low speed fans
  • Service valves (Series 200 - 300).
  • Liquid receiver.
  • Ceramic filter dryer.
  • Liquid receiver
  • High and low-pressure control.
  • Condensation control by pressure switch.
  • Probe alert “dirty condenser.
  • Thermostatic expansion valve and solenoid are shipped loose.
  • Automatic defrosting by air.
  • Low-speed dual discharge evaporator filled with nitrogen (in high temperature).
  • Electrical supply cable (3 m). (Series 200 - 300).
  • Electrical interconnection (2) evaporator (10 m) (Series 200 - 300).
  • Remote multifunctional electronic control (5 m). (Series 200 - 300).
  • Cable for light (3 m) (Series 200 - 300).
  • Voltage protector (only applies at 50 HZ).
  • Magneto thermic protection (three-phase units).
  • Solenoid valve is shipped loose for installation on the evaporator.

Optional features

  • Winter Kit.
  • Rotation / failure system for two units.
  • Synchronized defrost system for two units.
  • Anti-corrosion treatment on condenser / evaporator coil.
  • Condensate pump H version
  • Oil separator (200-300-400 series).
  • Monitoring and control system.
  • Time control.
  • Available in 60Hz. Other voltages on request.
  • Humidifier external to the equipment and control (cooling).
  • Nitrogen charging.

Energy efficiency

Our equipment's development is focused on optimising the refrigeration system, using compressors manufactured by leading brands and featuring a design that ensures top performance.

In addition, our tendency to use natural or A2L refrigerants allows us to offer equipment with minimal environmental impact, since sustainability is one of KIDE's strategic focuses.
