Products > Refrigeration units > Commercial series > Split > ESS – Silent split

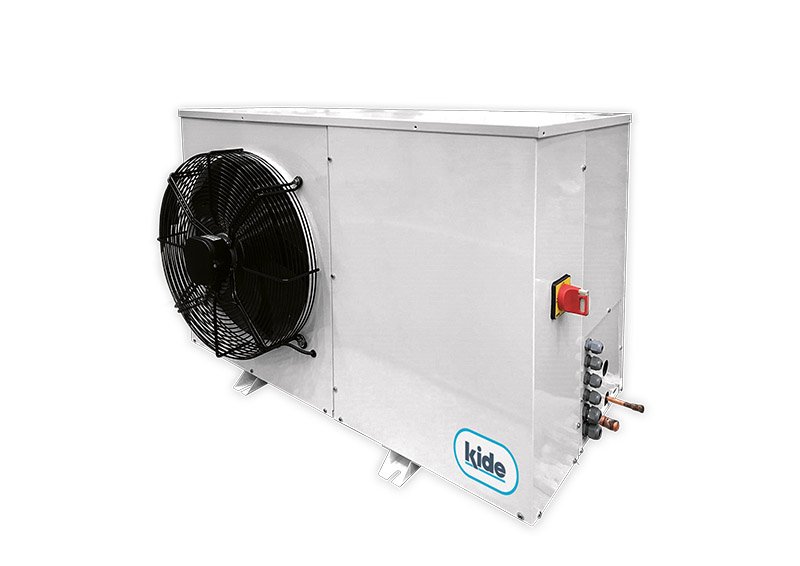

ESS - Silent split

Silent commercial refrigeration Split equipment for cold storage rooms which have a small and medium volume, and for use in medium and low temperatures.

0ºC-20ºC
R-449AR-404A
REQUEST A QUOTE

General features

  • Pre-charged with refrigerant R449 (Max. length 10 m).
  • Scroll compressor in the three-phase units Soundproof compartment and separated from the air flow.
  • Hermetic compressor on single phase units.
  • Low temperature with liquid injection in Scroll compressor units.
  • Oversized condenser coil with low speed fans
  • Service valves (Series 100 - 200 - 300).
  • Liquid receiver.
  • Ceramic filter dryer.
  • Liquid glass.
  • High and low-pressure control.
  • Condensation control by pressure switch.
  • Probe alert “dirty condenser.
  • Thermostatic expansion valve in the evaporator.
  • Solenoid valve in the evaporator.
  • Automatic defrosting by heating.
  • Draintipe heating element in low Tª (2 m).
  • Ceiling type evaporator with nitrogen (Series 100 - 200 - 300).
  • Cubic evaporator with nitrogen (Series 400 - 500).
  • Electrical supply cable (3 m) (Series 100 - 200 - 300).
  • Electrical interconnection (2) evaporator (10 m) (Series 100 - 200 - 300).
  • Remote multifunctional electronic control (5 m) (Series 100 - 200 - 300).
  • Cable for light (3 m) (Series 100-200-300).
  • Voltage protector.
  • Magneto thermic protection (three-phase units).

Optional features

  • Winter Kit.
  • Rotation / failure system for two units.
  • Synchronized defrost system for two units.
  • Anti-corrosion treatment on condenser / evaporator coil.
  • Oil separator (200-300-400 series).
  • Monitoring and control system.
  • Cubic evaporator (100-200-300 series).
  • Available in 60Hz. Other voltages on request.
  • Humidifier external to the equipment and control (cooling).

Energy efficiency

Our equipment's development is focused on optimising the refrigeration system, using compressors manufactured by leading brands and featuring a design that ensures top performance.

In addition, our tendency to use natural or A2L refrigerants allows us to offer equipment with minimal environmental impact, since sustainability is one of KIDE's strategic focuses.

Documentation

Technical specifications
Download catalogue
Download catalogue
