Products > Refrigeration units > Commercial series > Split > ESF – Centrifugal Split

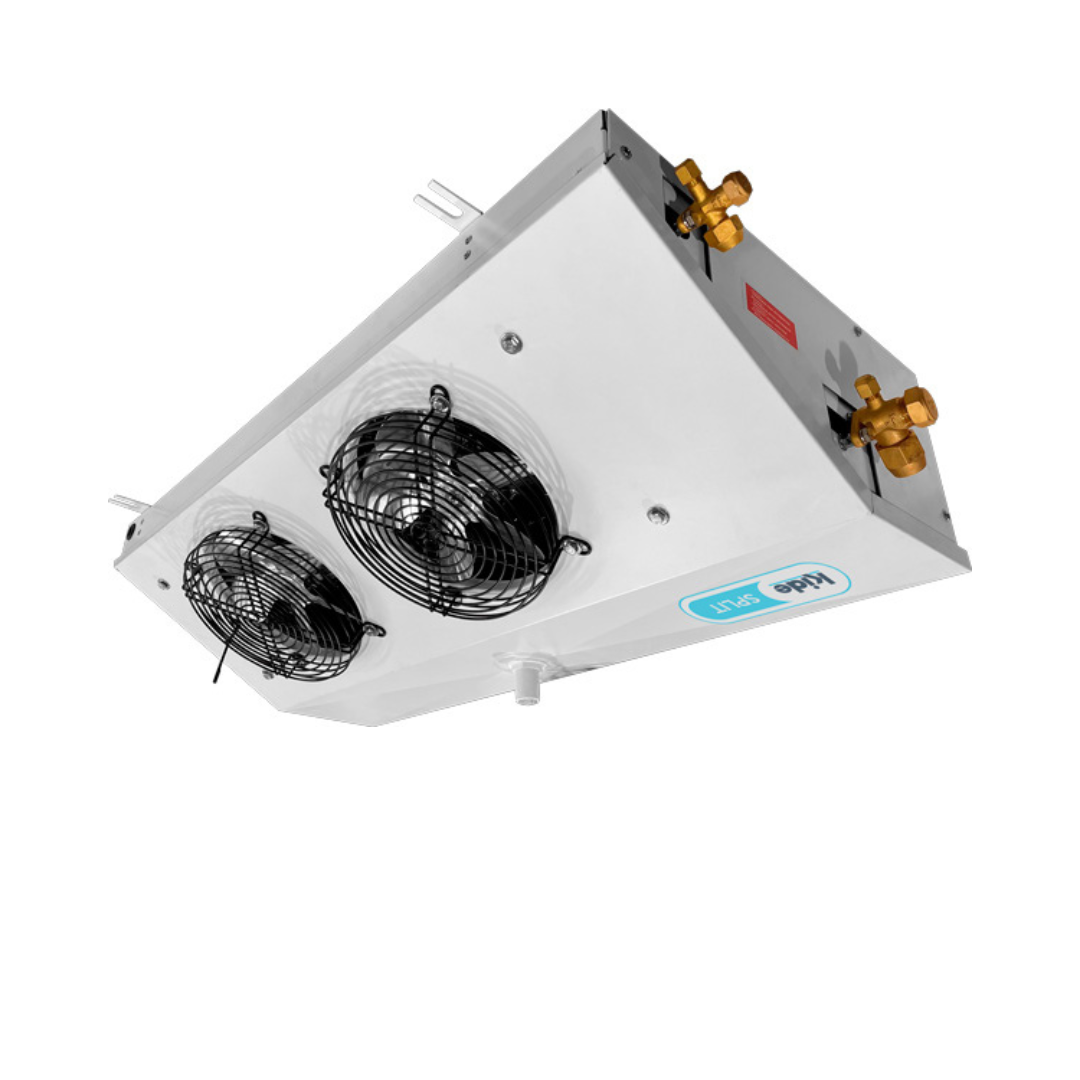

ESF - Centrifugal Split

Split commercial refrigeration equipment for cold storage rooms which have a small volume, centrifugal fan, for use in medium and low temperatures

0ºC-20ºC
R-449AR-452AR-404A
REQUEST A QUOTE

General features

  • Pre-charged with refrigerant (Max. length 10 m).
  • Hermetic compressor
  • Service valves (Series 100-200-300).
  • Liquid receiver.
  • Ceramic filter dryer.
  • Liquid receiver
  • High and low pressure control.
  • Condensation control by pressure switch.
  • Probe alert “dirty condenser.
  • Centrifuge fan in the condenser (Max. length 10m, min. diameter 250 mm Series 100, 315 mm Series 200-300 and 300x260 mm Serie 400).
  • Thermostatic expansion valve in the evaporator.
  • Solenoid valve in the evaporator.
  • Automatic defrosting by heating element.
  • Draintipe heating element in low Tª (2 m).
  • Ceiling type evaporator with nitrogen (Series 100 - 200 - 300).
  • Cubic evaporator with nitrogen (Series 400 - 500).
  • Cable for supply (3 m) (Series 100-200-300).
  • Electrical interconnection (2) evaporator (10 m) (Series 100-200-300).
  • Remote multifunctional electronic control (5 m) (Series 100-200-300).
  • Cable for light (3 m) (Series 100-200-300).
  • Indoor use.

Optional features

  • Winter Kit.
  • Rotation / failure system for two units.
  • Synchronized defrost system for two units.
  • Voltage protector.
  • Anti-corrosion treatment on condenser / evaporator coil.
  • Exhaust air duct (100-200-300 series).
  • With independent electrical panel.
  • Monitoring and control system.
  • Time control.
  • Cubic evaporator (100-200-300 series).
  • Humidifier external to the equipment and control (cooling).
  • Available in 60Hz. Other voltages on request.

Energy efficiency

Our equipment's development is focused on optimising the refrigeration system, using compressors manufactured by leading brands and featuring a design that ensures top performance.

In addition, our tendency to use natural or A2L refrigerants allows us to offer equipment with minimal environmental impact, since sustainability is one of KIDE's strategic focuses.
