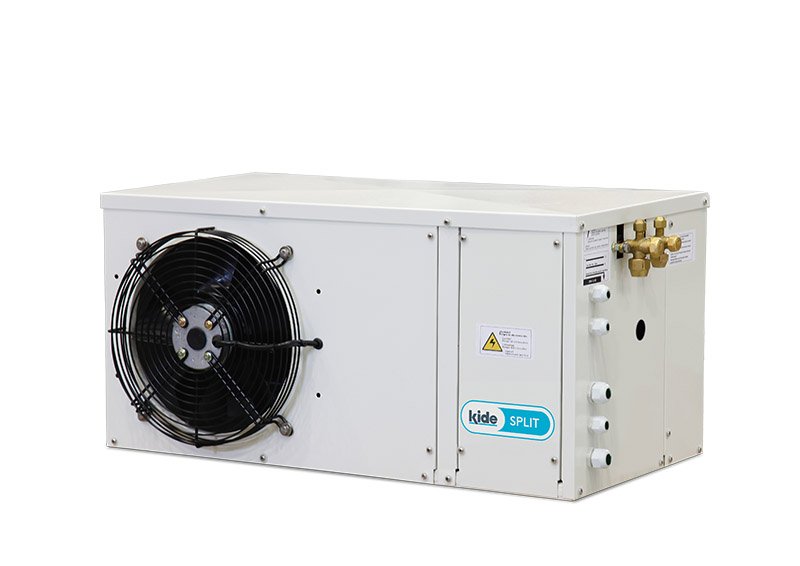

ESC - Split

Split refrigeration equipment for cold storage rooms, which have a small volume, and for use in medium and low temperatures.

0ºC-20ºC
R-449AR-452AR-404A

General features

  • Pre-charged with refrigerant (Max. length 10 m).
  • Hermetic compressor.
  • Service valves (Series 100 - 200 - 300).
  • Safety valve (Series 400-500).
  • Liquid receiver.
  • Ceramic filter dryer.
  • Liquid glass.
  • High and low pressure control.
  • Condensation control by pressure switch.
  • Probe alert “dirty condenser.
  • Thermostatic expansion valve in the evaporator.
  • Solenoid valve in the evaporator.
  • Automatic defrosting by heating element.
  • Draintipe heating element in low Tª (2 m).

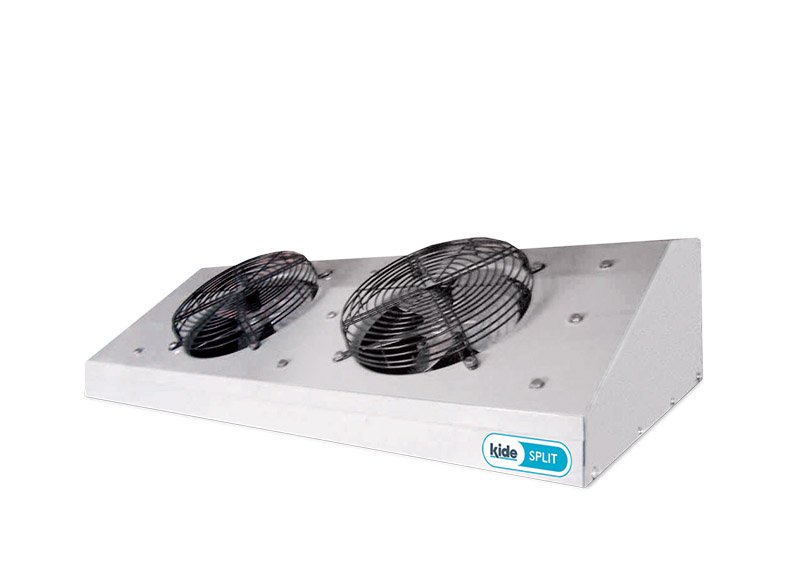

  • Ceiling type evaporator with nitrogen (Series 100 - 200 - 300).
  • Cubic evaporator with nitrogen (Series 400 - 500).
  • Electrical supply cable (3 m) (Series 100 - 200 - 300).
  • Câble d’interconnexion (2) électrique et sondes (10 m) (Séries 100 - 200 - 300).
  • Remote multifunctional electronic control (5 m) (Series 100 - 200 - 300).
  • Cable for light (3 m) (Series 100-200-300).
  • Voltage protector.

Optional features

  • Winter Kit.
  • Rotation / failure system for two units.
  • Synchronized defrost system for two units.
  • Voltage protector (only applies at 50 HZ).
  • Anti-corrosion treatment on condenser / evaporator coil.
  • With independent electrical panel.
  • Monitoring and control system.
  • Time control.
  • Cubic evaporator (100-200-300 series).
  • Available in 60Hz. Other voltages on request.
  • Humidifier external to the equipment and control (cooling).

Energy efficiency

Our equipment's development is focused on optimising the refrigeration system, using compressors manufactured by leading brands and featuring a design that ensures top performance.

In addition, our tendency to use natural or A2L refrigerants allows us to offer equipment with minimal environmental impact, since sustainability is one of KIDE's strategic focuses.
