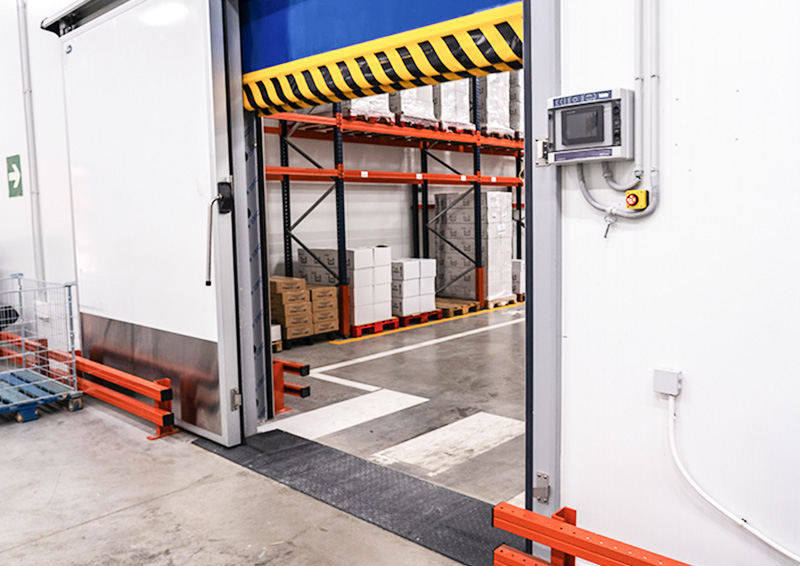

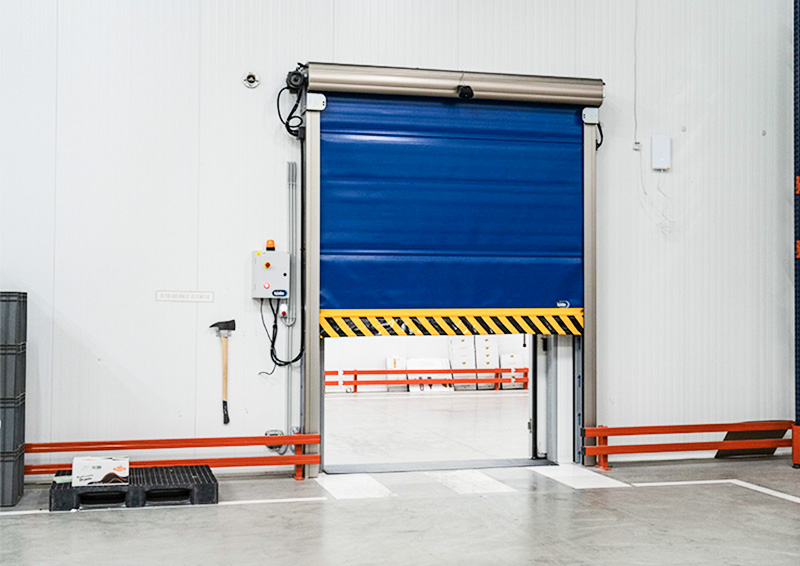

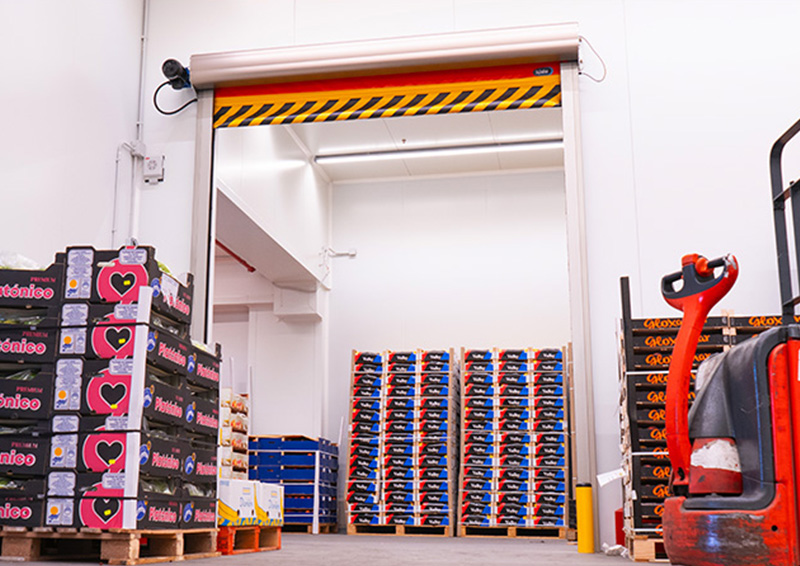

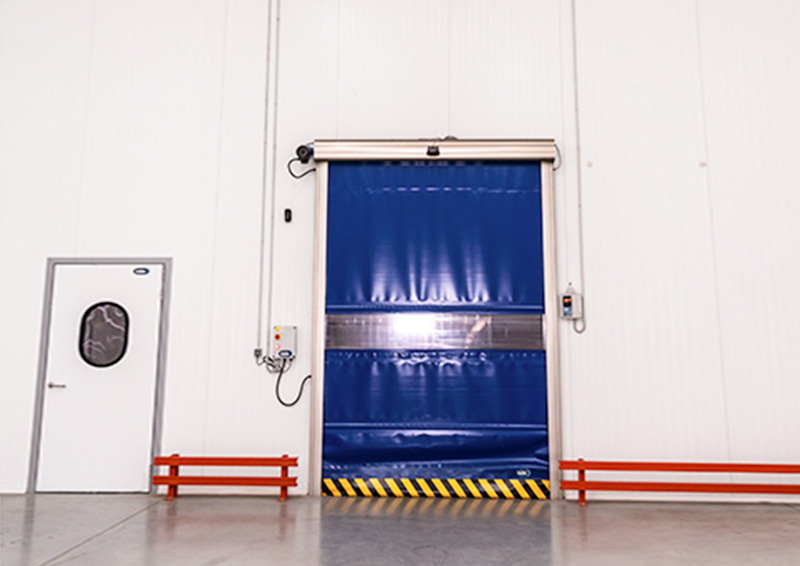

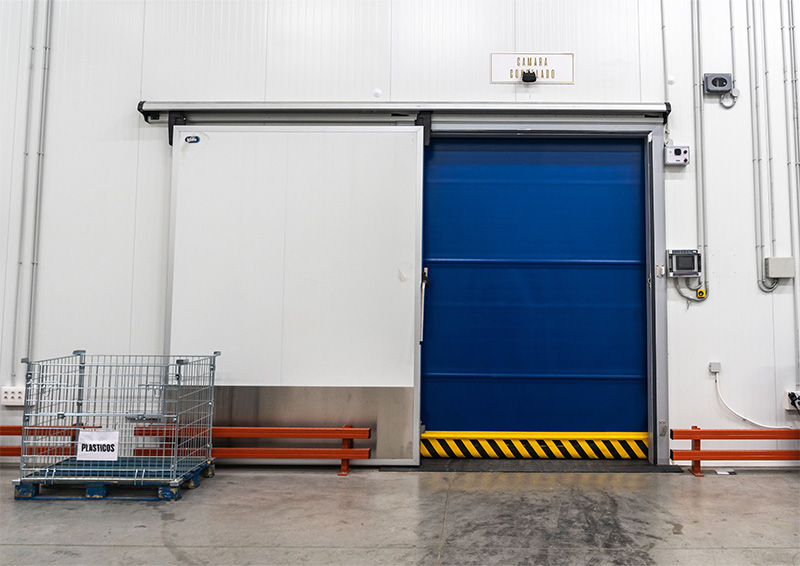

KIDE’s rapid roll up doors allows smooth transit between two areas, optimising the work process, minimising temperature loss and insulating from noise.
Door curtain made from PVC fabric with woven fibres.
Weight: 900 gr/m².
Thickness of 1 mm.
Reinforcement bars to provide rigidity to the curtain.
Transverse viewing panel.
Choice of different standardn finishes.
Lower edge of the canvas dark grey.
Extruded aluminium shaft around which the curtain is rolled.
Extruded aluminium cover housing in RAL 9010.
Extruded aluminium guides, lacquered in RAL 9010.
Includes sealing strip on both sides of the guide.
Patented self-repairing system.
Three-phase motor with 1 kW power.
Magnetic encoder for position control.
Electromagnetic brake.
Handle for manual operation.
“Inverter” technology.
Acceleration and deceleration ramp.
Protection rating: IP 54.
Operating temperature: 20 ºC to 45 ºC.
Single-phase power supply 220 VAC 50 Hz.
Integrated male plug.
Emitter-receiver photocell barrier integrated into the side guides.
Self-reinsertion components accessible from both sides of the door for fast recommissioning.
Set of handles.
Remote control.
Radar.
Magnetic loop.
Contactless push button.
KIDE doors are characterised by the simplicity and efficiency of their design, resulting in a product that always offers maximum guarantees of watertightness and insulation.
